Cathedral in T3D MIT

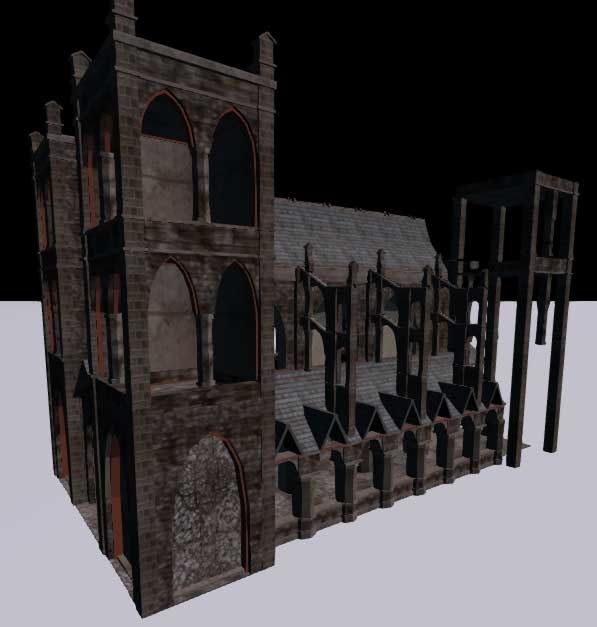

I decided to see if I could get the cathedral from Constructor into T3D MIT.


While it doesn't come in like it's suppose to, it at least imports. (I do realize it was a stress test object)

Must be a hard limit on the amount of brushes that get exported. I proceeded to cut it in half and re-export it.


Quick workflow from Constructor to T3D MIT

1. Made my scene in Constructor

2. Saved in the default Constructor file format

3. Saved as... .map file

4. Import to DeleD using the Map importer plugin

5. I adjusted the scaling (Sometimes down to 30 percent of the original)

6. Saved in the default DeleD file format

7. Exported using the Collada exporter plugin

8. Imported to T3D MIT

9. Changed collision to visible mesh

10a. Opened in the shape editor and had to select the full path for the texture.

10b. Was...

singleton Material(Hangar_wall2)
{
   mapTo = "wall2";
   diffuseMap[0] = "wall2.jpg";
   translucentBlendOp = "None";
};

Should be...

singleton Material(Hangar_wall2)
{
   mapTo = "wall2";
   diffuseMap[0] = "art/shapes/ColladaTesting/textures/starter/wall2.jpg";
   translucentBlendOp = "None";
};

10c. Otherwise, the material will show up in the editor and be applied to the object, but not on
a game restart.
