I've been playing with the terrain constants in engine\terrain\terrRender.h

I changed this
enum TerrConstants {
   MaxClipPlanes = 8, ///< left, right, top, bottom - don't need far tho...
   MaxTerrainMaterials = 256,

   EdgeStackSize = 1024, ///< value for water/terrain edge stack size.
   MaxWaves = 8,
   MaxDetailLevel = 9,
   MaxMipLevel = 8,
   MaxTerrainLights = 64,
   MaxVisibleLights = 31,
   ClipPlaneMask = (1 << MaxClipPlanes) - 1,
   FarSphereMask = 0x80000000,
   FogPlaneBoxMask = 0x40000000,
   VertexBufferSize = 65 * 65 + 1000,
   AllocatedTextureCount = 16 + 64 + 256 + 1024 + 4096,
   TerrainTextureMipLevel = 7,
   TerrainTextureSize = 1 << TerrainTextureMipLevel,
   SmallMipLevel = 6
};
to this
enum TerrConstants {
   MaxClipPlanes = 8, ///< left, right, top, bottom - don't need far tho...
   MaxTerrainMaterials = 256,

   EdgeStackSize = 1024, ///< value for water/terrain edge stack size.
   MaxWaves = 8,
   MaxDetailLevel = 9,
   MaxMipLevel = 8,
   MaxTerrainLights = 64,
   MaxVisibleLights = 31,
   ClipPlaneMask = (1 << MaxClipPlanes) - 1,
   FarSphereMask = 0x80000000,
   FogPlaneBoxMask = 0x40000000,
   VertexBufferSize = 65 * 65 + 1000,
   AllocatedTextureCount = 16 + 64 + 256 + 1024 + 4096, //default ends at 4096

   TerrainTextureMipLevel = [b]8[/b],//was 7 ///< mip level of generated textures
   TerrainTextureSize = 1 << TerrainTextureMipLevel, //was 1 ///< size of generated textures
   SmallMipLevel = [b]7[/b] //was 6
};

I thought changing the mip level would make the mipmaps load over a smaller area. Actually I was right, but all kinds of artifacts appeared. Does anyone know anything about the terrain renderer or the constants? I'm just trying to get the texture to repeat over a smaller area so the detail is increased up close. Does anyone know how to do that, or how to eliminate these artifacts?
NextNext Thread
PrevPrevious Thread
More from Torque Game Engine


Associate Tom Spilman
Sickhead Games
#1
04/11/2007 (4:43 pm)
I just did some work to convert some legacy terrain to a 512 height map. It took more effort than just changing a const. There are various interdependencies between consts and hard coded values which break things. All i can say is prepare to do alot of debugging... few people really understand the legacy terrain system and how it all works.

By the way this would be a great project for someone to take on... document the consts in TerrRender.h and TerrData.h.

Torque Owner Stephen Lujan
#2
04/14/2007 (3:19 pm)
That's good to know, but I was hoping what I'm attempting is a lot less difficult. I didn't want to change the size of the height map, which I've read about others struggling with. I just wanted to fit more mipmaps of the terrain texture into the same area, which I thought to have far fewer interdependencies. By default it seems that each mipmap covers an 8x8 area of the heightmap. I would like to render the texture over smaller areas than that. I thought I could do that by changing those two constants I bolded above, which both the terrain renderer and the texture blender rely on. I read through the terrain renderer code and it seems like it should work but this is what it looks like in the game.

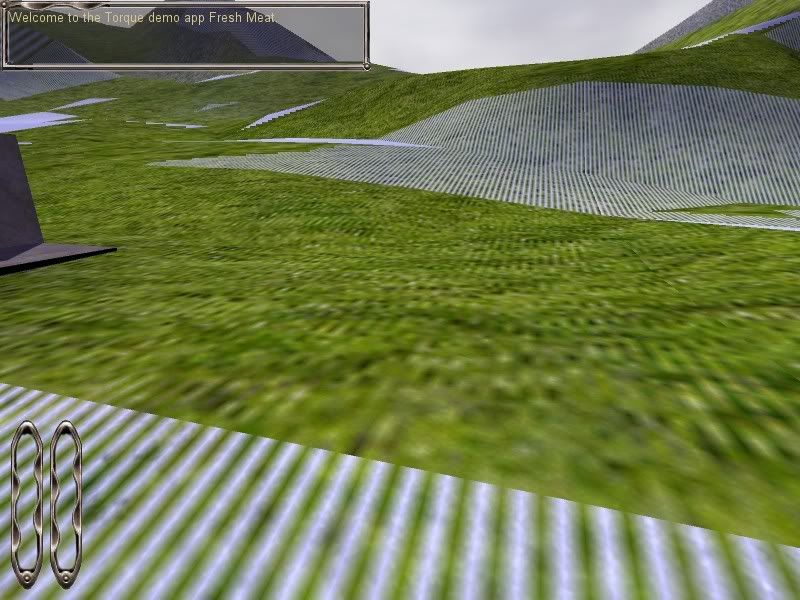

i9.photobucket.com/albums/a89/AnimateDream/links/screenshot_005-00001.jpgThere's these weird striping patterns in the texture as though things are overlapping that shouldn't, and I have no idea where the random white is coming from. I'll let you know if i have any breakthroughs.

Associate Fyodor -bank- Osokin
Dedicated Logic
#3
04/19/2007 (6:44 pm)
Stephen, if I remember correctly, similar to this I had when I tried to use non 256x256 bitmaps for painting terrain..
(I was working with water code actually, but ended up in terrain code :) but that was about half a year ago)

Try to replace the bitmap used for painting the terrain with something like 128x128 or 512x512.
